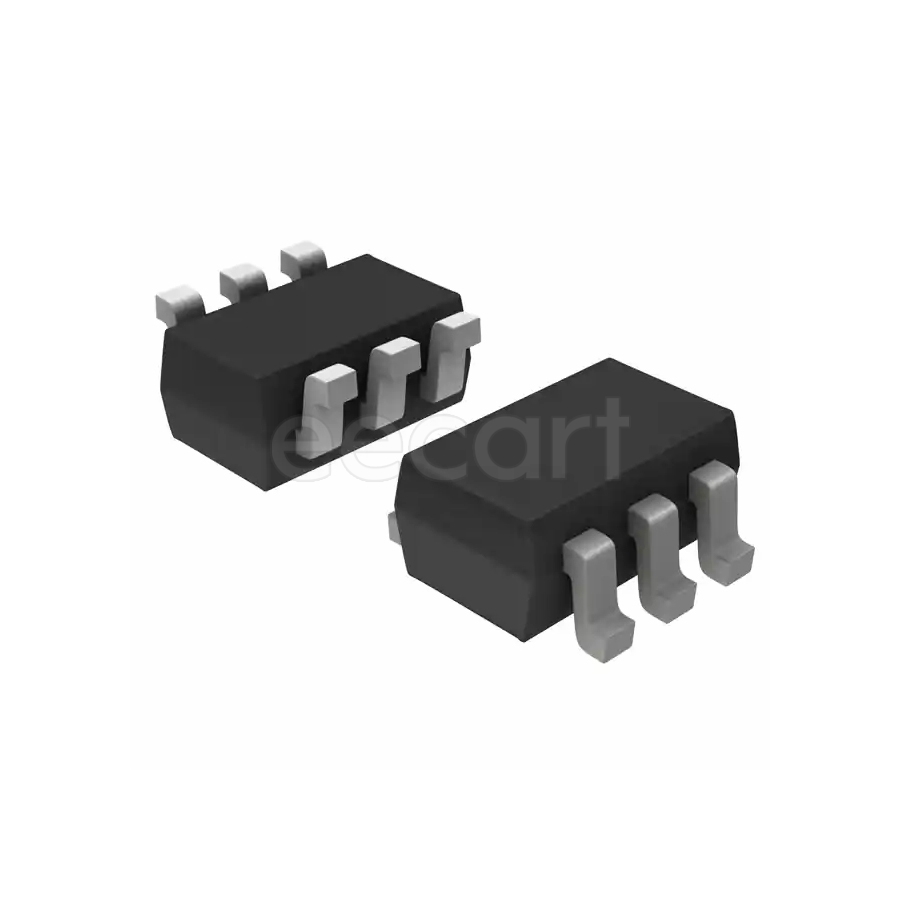

NUF2221W1T2G
Manufacturer:
On Semiconductor
Mfr.Part #:
NUF2221W1T2G
Datasheet:
Description:
EMI / RFI Filters SOT-363 SMD/SMT RC (Pi) 2nd 42 pF 22 Ω
| Parameter | Value |
|---|---|
| Capacitance | 42 pF |
| Voltage Rating (DC) | 5.25 V |
| Length | 2.2 mm |
| Width | 1.2446 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Height | 1.0922 mm |
| Depth | 2.2 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Current Rating | 100 A |
| DC Resistance (DCR) | 26.4 Ω |
| Test Frequency | 1 MHz |
| Operating Supply Voltage | 5.25 V |
| Max Power Dissipation | 225 mW |
| Max Supply Voltage | 5.25 V |
| Shielding | Unshielded |
| Number of Channels | 3 |
| Number of Bits | 2 |
| Number of Lines | 3 |
| Max Supply Current | 10 nA |
| Direction(Counting Sequence) | Bidirectional |
| Max DC Current | 100 nA |
| ESD Protection | Yes |
| Max Breakdown Voltage | 8 V |
| Chemistry/Technology | RC (Pi) |
| Schedule B | 8541100050 |
| Filter Order | 2nd |
| Packaging | Reel |
| RoHS | Compliant |
| Channel Resistance | 22 Ω |
Stock: 66
Distributors
pcbx
pcbxUnit Price$0.47904
Ext.Price$0.47904
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47904 | $0.47904 |
| 10 | $0.38141 | $3.81410 |
| 25 | $0.34685 | $8.67125 |
| 50 | $0.31542 | $15.77100 |
| 100 | $0.28683 | $28.68300 |
| 300 | $0.27204 | $81.61200 |
| 500 | $0.25802 | $129.01000 |
| 1000 | $0.24279 | $242.79000 |
